Firmware and 3D frame for my personal financial ticker

Built for the Waveshare ESP32-C6 LCD 1.47"

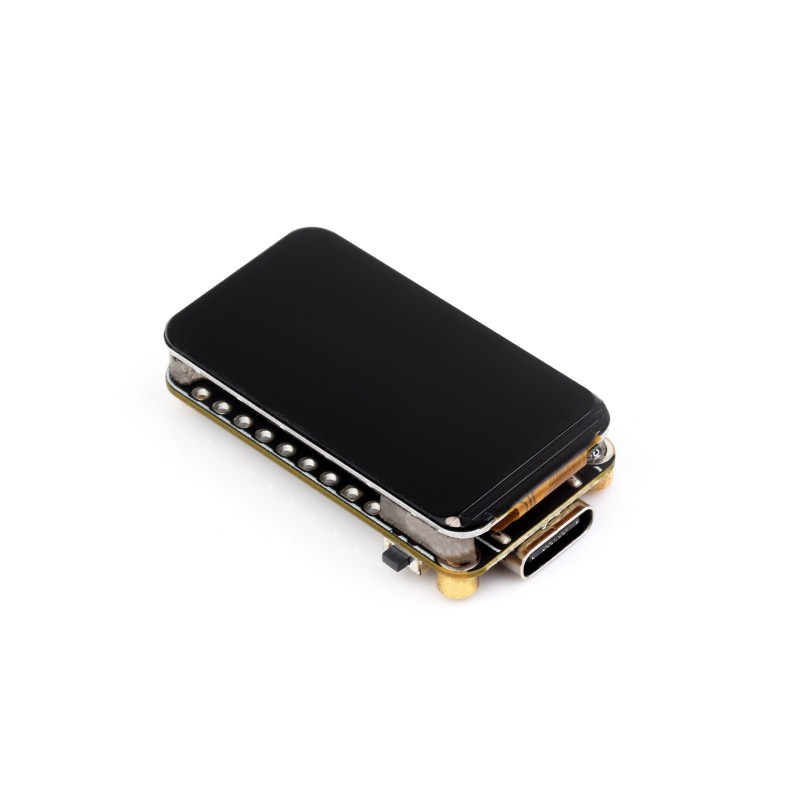

front

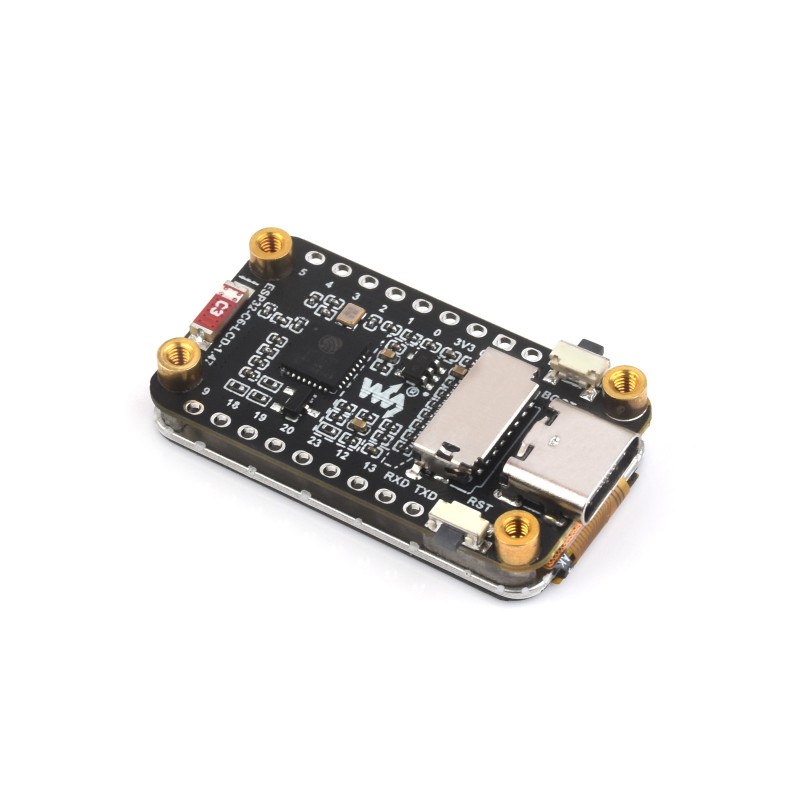

rear

For more information, check the official Waveshare product page

▶ PLAY Booting Video... [watch until the end]

▶ PLAY Working Video... [watch until the end] ETF pages cycle automatically at 15-sec intervals

(Tip: use Ctrl+Click or Middle-Click to open VIDEO in a new tab)

DOWNLOAD

Download Demo Firmware (.zip) Includes: esp32.example.ino, config.example.h, market.example.json, language.example.h N.B.: rename them to: esp32.ino, config.h, market.json, language.h

Download 3D Frame (.stl) 3D PRINTED FRAME - LEGO TECHNIC STYLE 100% compatible Download Clearance Test (.stl)

Hardware & Materials
3D Printer: Bambu Lab A1 / A1 Mini
Filament: Silk PLA Plus
Hardware Required: 4× M2 screws

Slicer Settings
Orientation: Face-down (front side flat on the build plate for the best surface finish)
Layer Height: 0.20 mm
Wall Loops (Perimeters): 4 or 5 (crucial for making the Technic hole walls 100% solid and durable)
Infill: 30%-40% (Gyroid or Honeycomb)
Supports: Yes (Tree / Auto - only needed for the internal ESP32 mounting tabs)
